Oscillate wound strip: Tailor-made solutions to optimise your production processes.

At Vinco, we are experts in offering high-quality strip solutions that meet the specific needs of each customer. Among our wide range of products,** traverse - oscillate wound strip **  stands out as an increasingly popular option due to its multiple advantages.

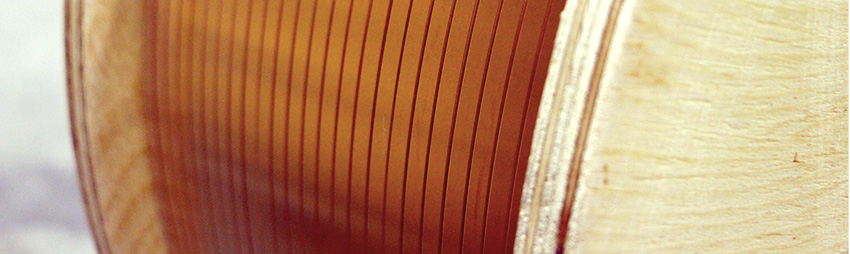

copper strip spooled on 2000kg wooden reel

What is the oscillate wound strip?

The oscillate wound strip, also known as oscillate reels or continuous strip, is the result of joining in the same reel several high-strength steel strips by means of a welding process, forming a single reel of great length.

At VINCO we are experts in longitudinal slitting of strips, adapting our production to the needs of each client. We have spooling lines to supply strips in reels up to 2,000 kg.



Benefits of the oscillate wound strip:

Reduced waste: The entire spooled strip is used, minimising waste and optimising your investment.

Maximum efficiency: By using longer reels, the frequency of reel changes on our customers' machines is significantly reduced. This results in less machine downtime and a considerable increase in productivity.

Highest reliability: The oscillate wound strip is characterised by its high uniformity in terms of dimensional tolerances, strength and tension. This guarantees a precise and reliable machine process, minimising the risk of faults and resetting.

Optimised transport and storage: We offer oscillate wound strip in a wide range of weights (coils up to 2000 kg) and dimensions, adapting to the specific needs of each customer. This optimises storage space and facilitates the transport of strip.

Cost-effectiveness: The use of oscillate wound strip reduces labour and energy costs and optimises material consumption.



contact us now by email at info@vinco.es



SPOOLING CAPACITY:

  • Thickness: From 0.2 mm to 2.30 mm*.
  • Width: From 5 mm to 50 mm*.
  • Reel weight: Up to 2000 kg*, ideal for high production volumes and avoiding frequent coil changes.



TYPE OF WELDING AT CUSTOMER'S CHOICE:

  • Method: TIG
  • Marking: Painting (Colour to choose) 1 side/ 2 sides.
  • Flag.
  • Vertical / diagonal.



CUSTOMIZATION OF CONDITIONING and PACKAGING:

In order to improve the handling and storage of the spooled strip at our customers' facilities, we offer different options for the packaging and arrangement of the material on pallet:

  • On cardboard core.
  • On wooden reel.
  • Coil lying down (vertical axis).
  • Coil in a cradle (horizontal axis).



Conditioning characteristics On cardboard core On wooden reel
Max. spooling width 500 mm 500 mm
Inner Diameter 300** / 400 / 500 mm 300** / 400 / 500 mm
Max. outside diameter 1,200 mm 760 mm
Max. weight 2,000 kg 1,500 kg

Consult us for other reel dimensions.

* Under commercial agreement.


At Vinco, we offer a wide range of traverse / wound strip in different sizes, materials and finishes to meet the specific needs of each customer. Our team of experts will advise you on the ideal solution for your business.

For more information on Vinco's oscillate wound strip and other solutions, please do not hesitate to contact us. Contact us without obligation and we will advise you on the most suitable solution for your needs.



Ribbon wound strip with and without cardboard
